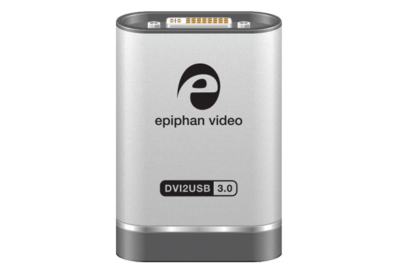

Epiphan DVI2USB 3.0
86.48 CHF Inkl. 8.1% MWST
| Interface | USB 3.0, USB 2.0 | ||
| Dimensions | 3.54″×2.36″×0.91″ (90 mm × 60 mm × 23 mm) | ||

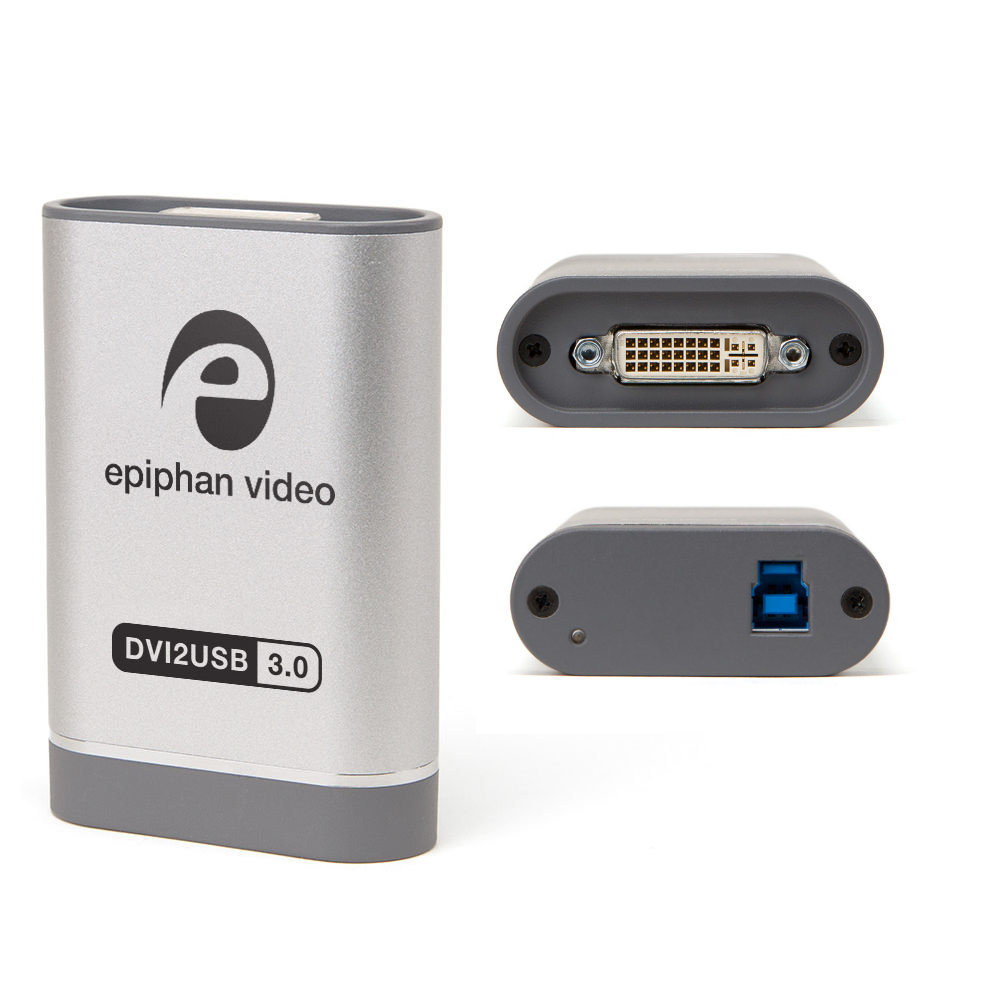

| Connectors | DVI-I (integrated, digital & analog) USB 3.0 B-Type connector | ||
| Input | VGA and DVI (HDMI video compatible) | ||
| Video Sampling | 24 bits per pixel, 8:8:8 format 16 bits per pixel, 5:6:5 format 8 bits per pixel, 3:3:2, 3:2:3, 2:3:3 or 256-grey scale format 4 bits per pixel, 16-grey scale format | ||
| Supported video modes | Up to 1920×1200 | ||
| Update rate | Frame rate is independent of video content when using USB 3.0 | ||
| Resolution | Frame rate (YUV 4:2:0 Color Space) | Frame rate (RGB 24 Color Space) | |
| 640×480 | 60 fps | 60 fps | |
| 800×600 | 60 fps | 60 fps | |
| 1024×768 | 60 fps | 60 fps | |
| 1280×1024 | 60 fps | 60 fps | |
| 1600×1200 | 60 fps | 30 fps | |
| 1920×1080 | 60 fps | 30 fps | |
| 1920×1200 | 60 fps | 30 fps | |
| HDMI Audio | 16-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates | ||
| LED | One LED to indicate the status of the DVI2USB 3.0 (power, readiness, and operation in progress) | ||
| OS Support | Windows 10 (x64), Linux (x86, x86_64), DirectShow (Windows), and V4L (Linux) supported | ||
| Country of Origin | Made in China | ||
Produkt ausverkauft
